SA-06 Magnetic Storage Box All Carbon Road Disc Bike

SA-06 Magnetic Storage Box All Carbon Road Disc Bike

$1,066.57
$8,650.00 $1,066.57
Sale Sold out
Shipping calculated at checkout.
颜色: Pink + Green Glossy
SIZE
With or without handles

This model adopts the geometric shape of a road vehicle and is designed with a super large tire capacity of 38C, which can support both regular road tires and gravel tires.
The lower tube is designed with a magnetic quick release structure storage space, which can accommodate a large amount of luggage. The vehicle has two additional installation points, which can be used to install water bottles, storage bags, and luggage compartments, or to fill gas cylinders.
Very suitable for long-distance road travel and cycling on a few off-road routes.
Suitable for your long-distance cycling plan, don't worry about encountering impassable road conditions,
Multiple mounting points can reduce the weight on your body, making cycling easier.
The geometry of the ROAD frame allows you to maintain comfort during long-distance cycling

Product Specification

Type : All Road frameset

Frame model : Permeants SA-06

Material : Full Carbon T800+T1000

Weave :UD / 3K

Finish : UD Black Matte / Glossy / Custom painting and decals

Frame Weight : 980±40g

Fork Weight : 370±15g

Headtube : 1/2" (Top ) , 1-/2" ( Down )

BB Version : T47 (85.5mm)

Size : 47/50/52/54/56/58cm

Tire Size : 700*38C

View full details

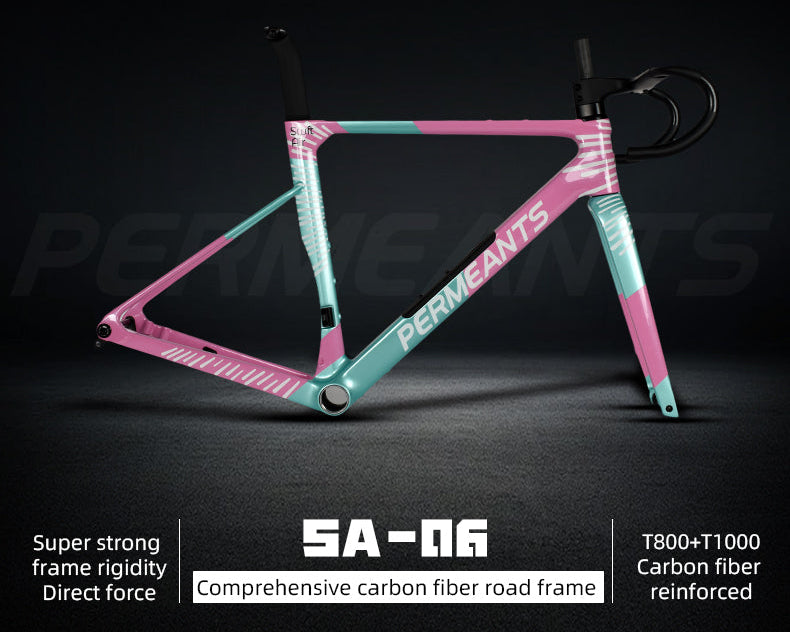

SA-06 magnetic carbon fiber all-terrain frame

road frame

Permeants SA-06

Lots of storage space, mounting points, and maximum 38C tire capacity support using road bike geometry, perfect for long-distance road riding, long-distance travel, the ability to stay high at the same time, not having to put up with the speed reduction that comes with gravel models, and the ability to install greavel tires for more gravel conditions, so you can ride anywhere but in the mountains

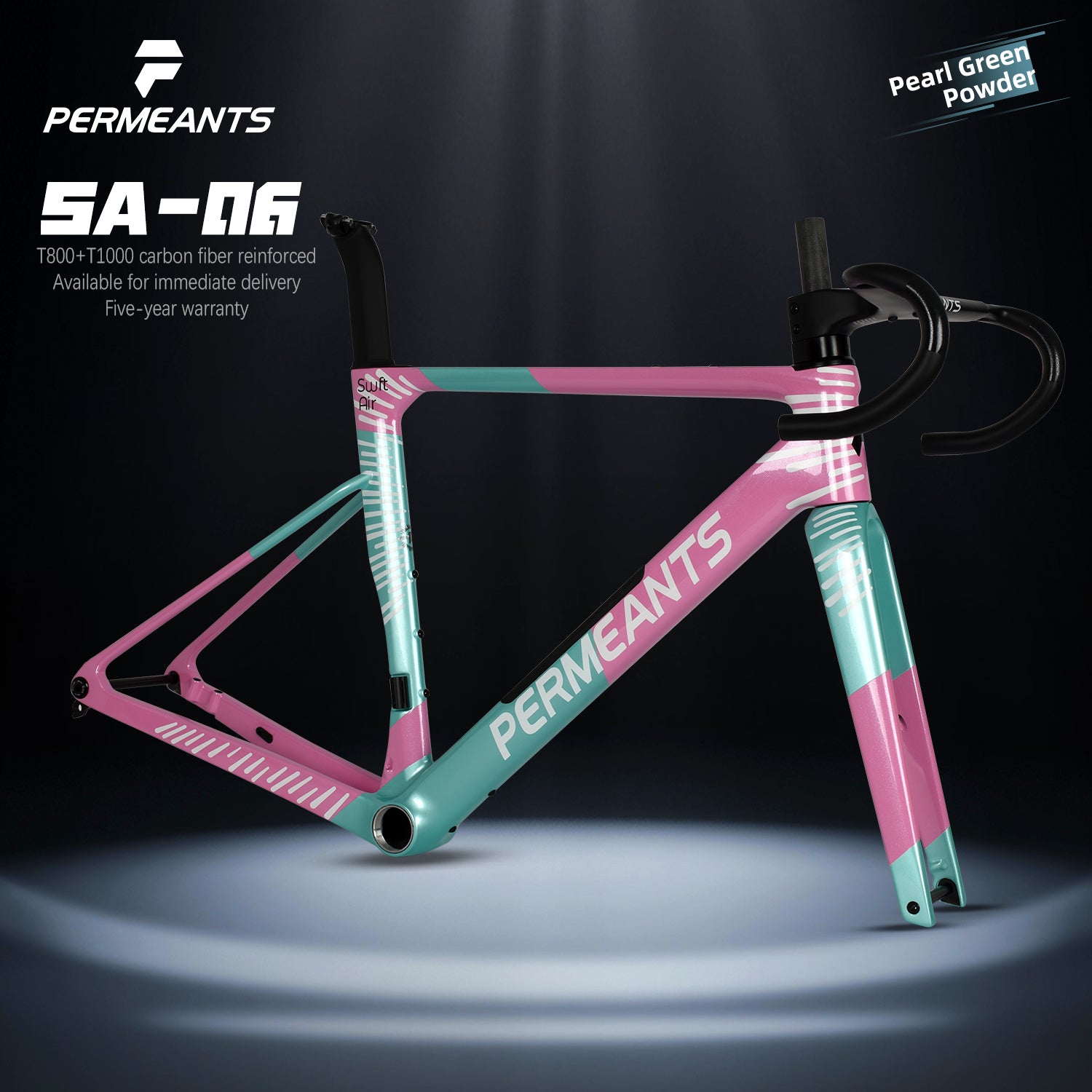

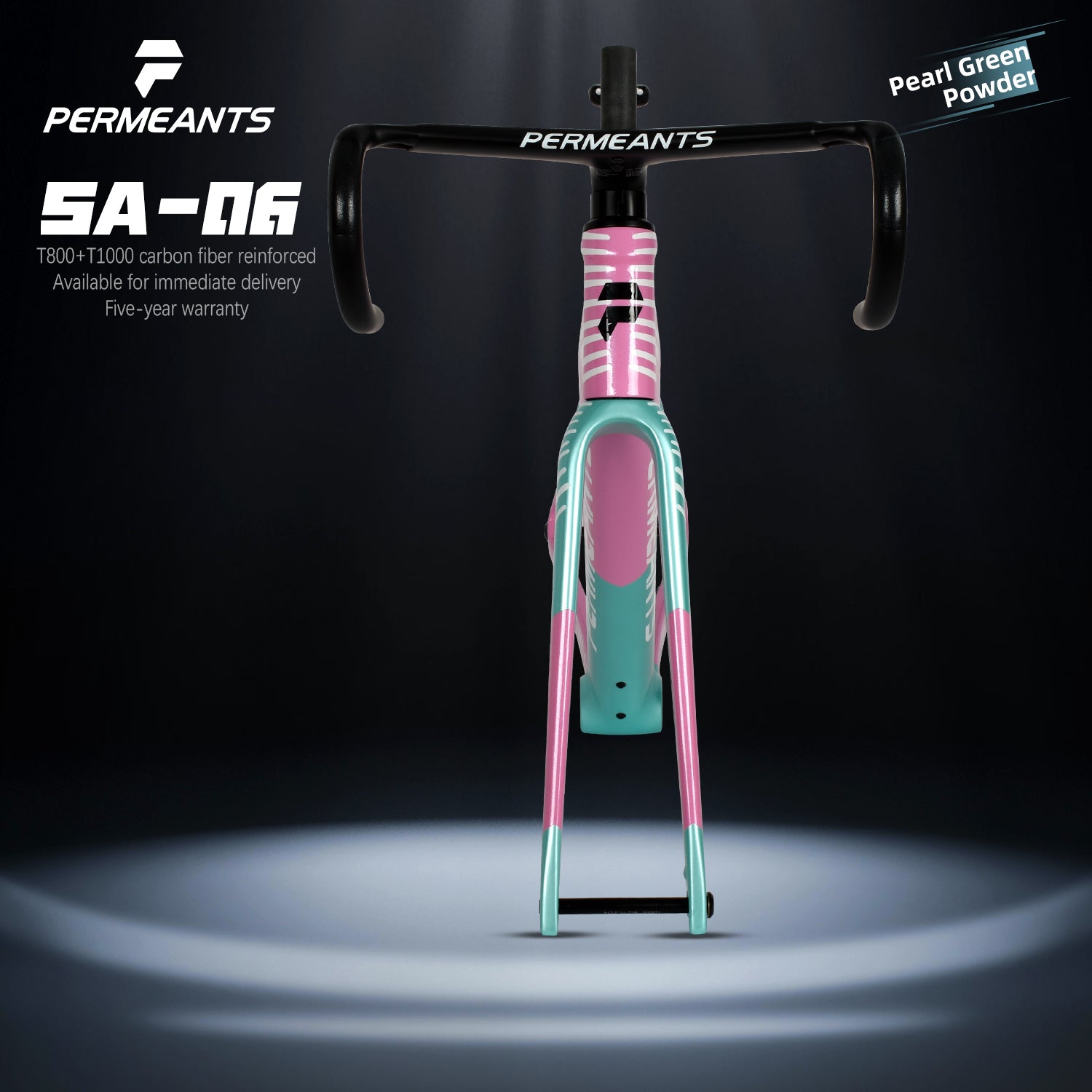

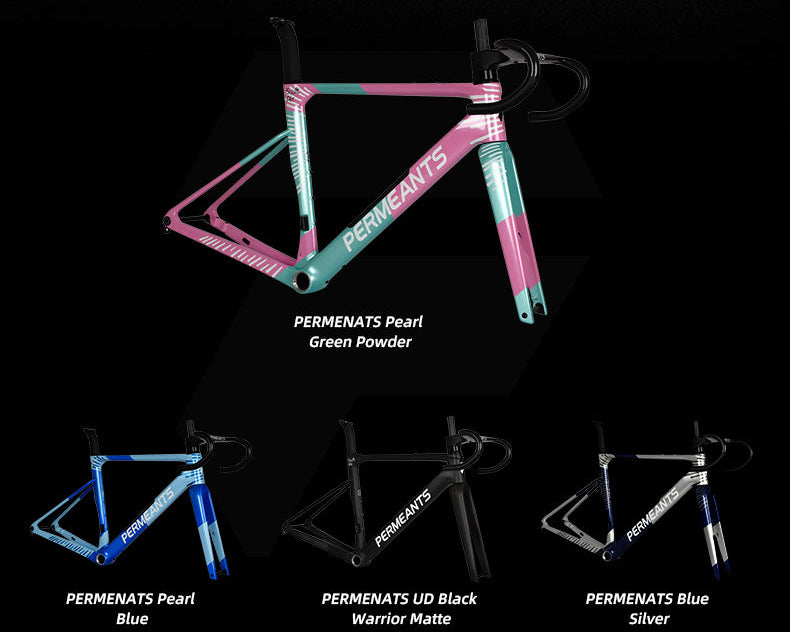

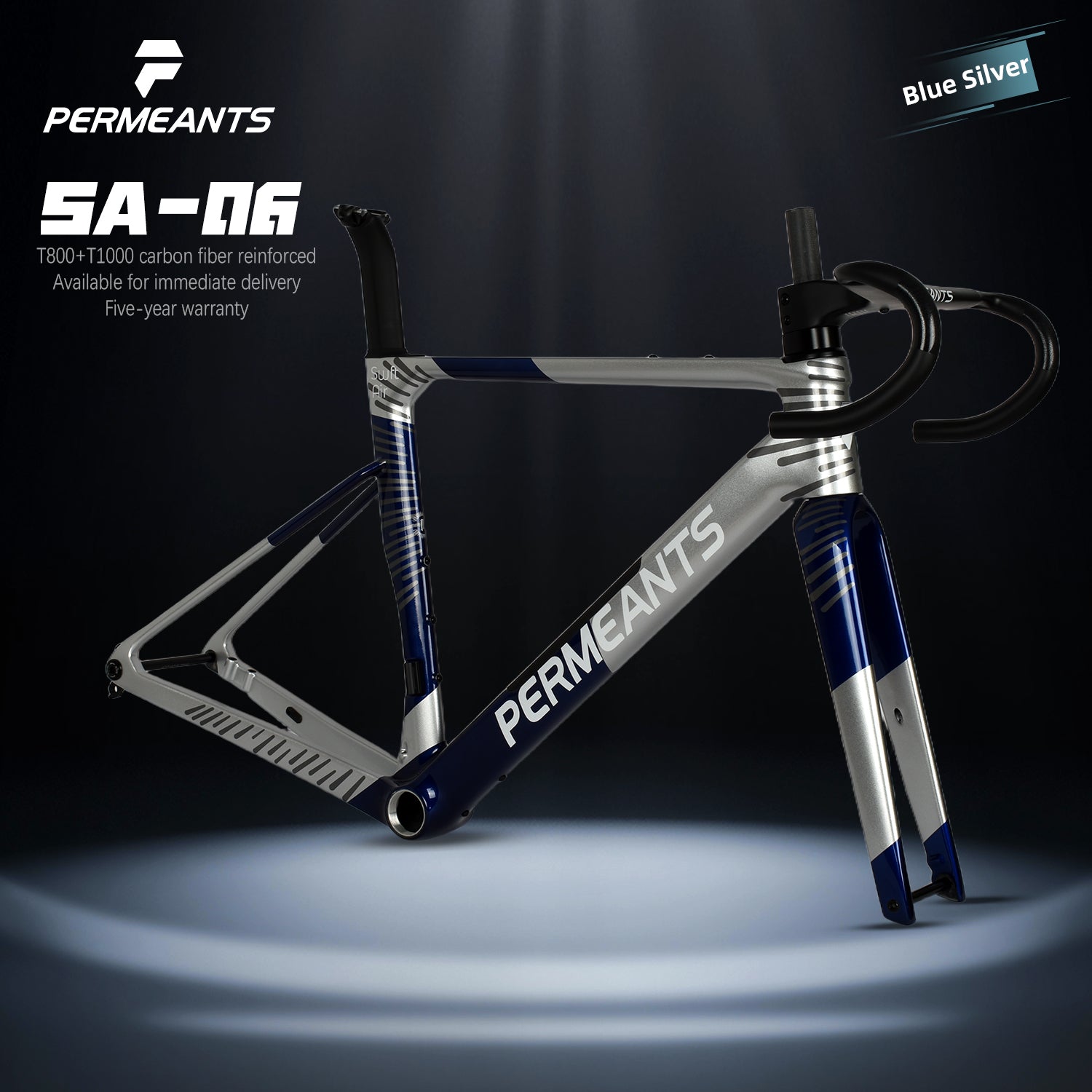

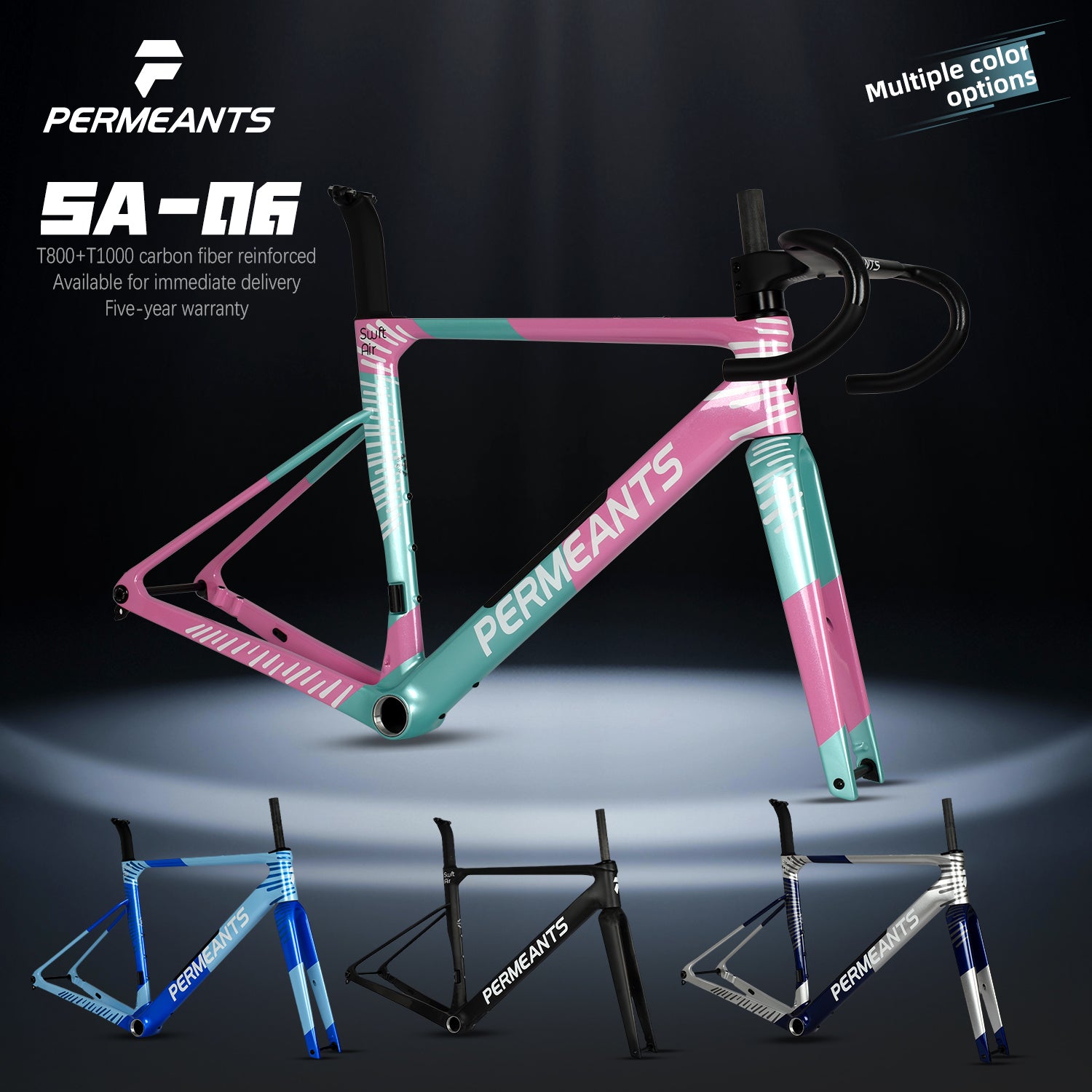

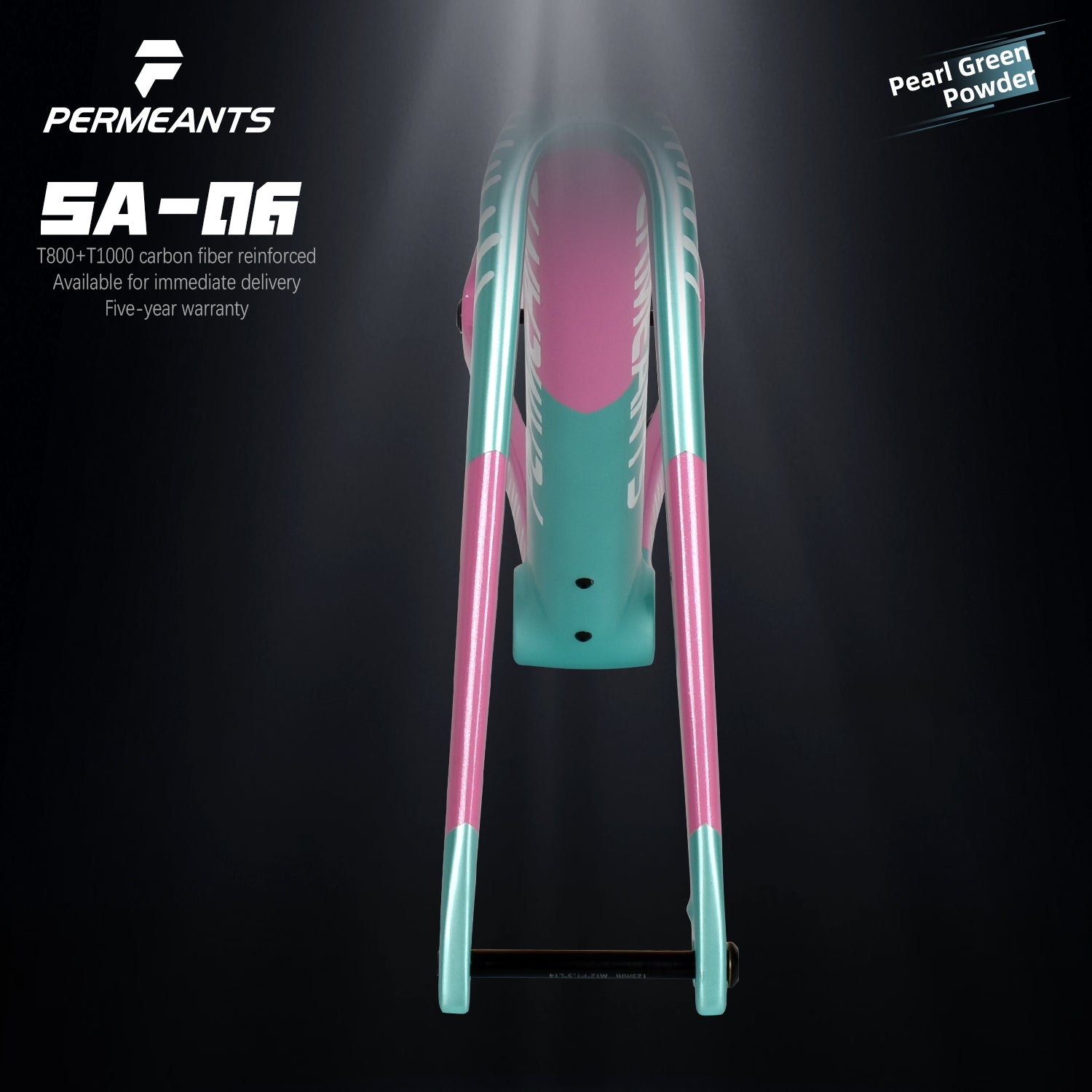

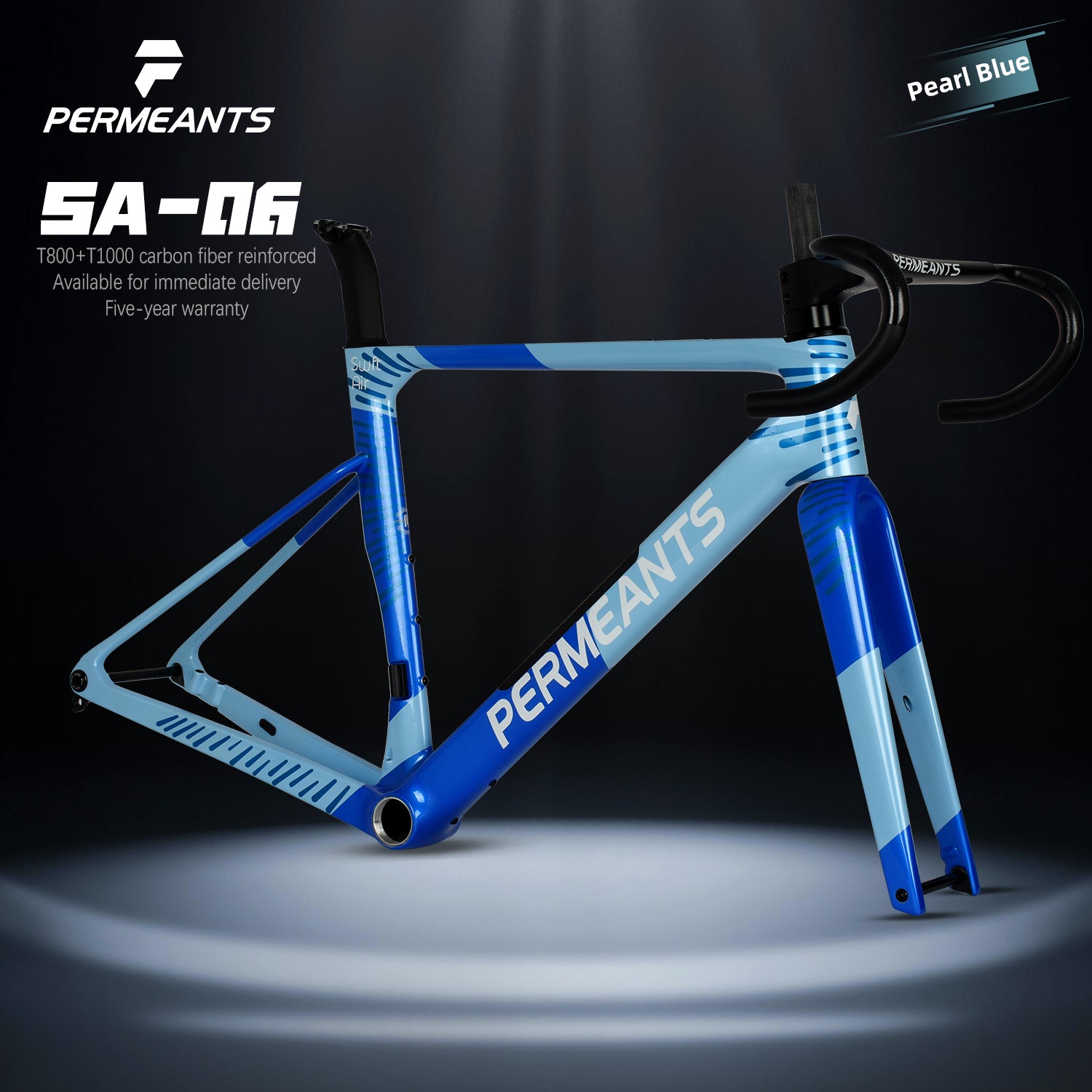

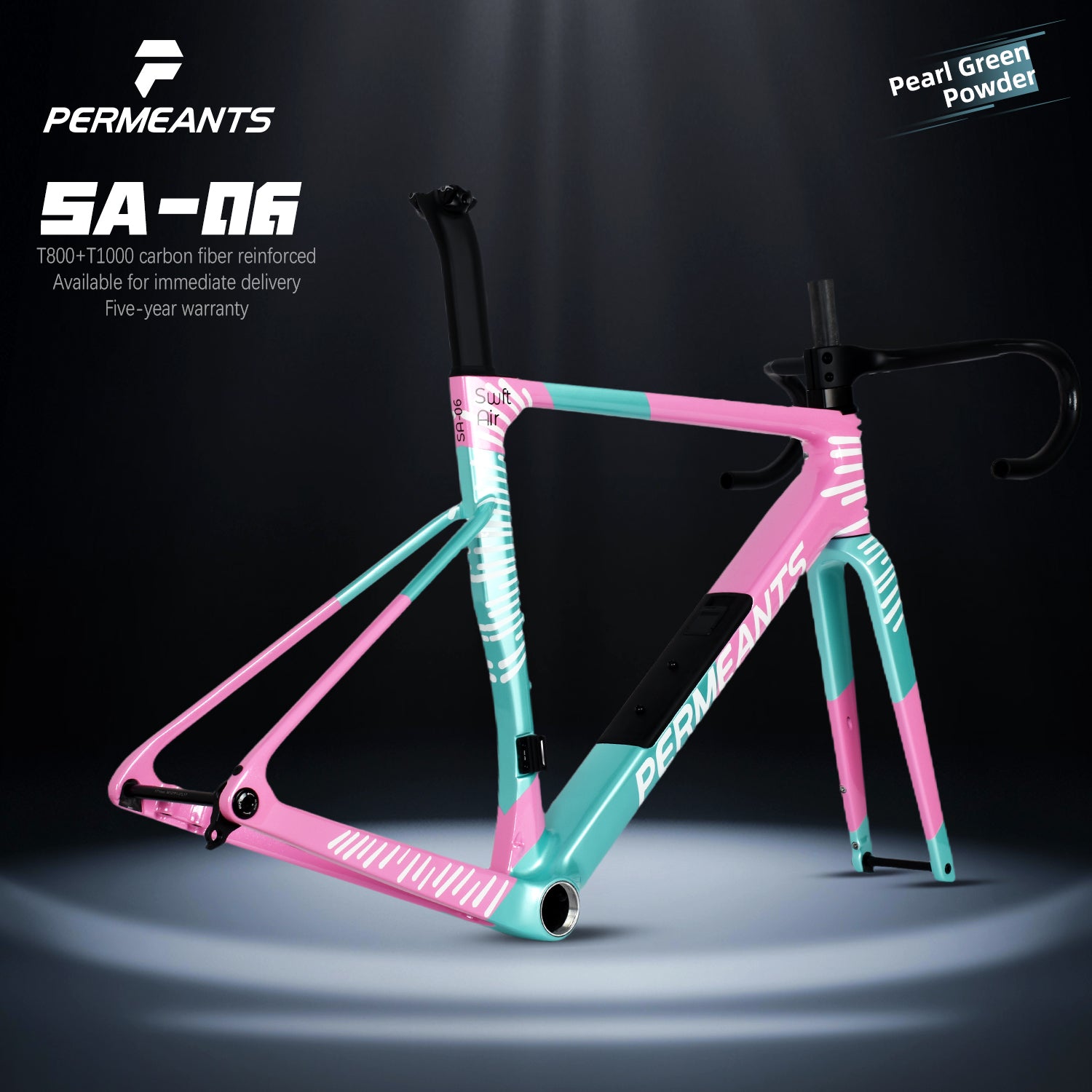

SA-06 4 official spot liveries: green, pink, blue, black, silver

Spot color

Official Spot Color

We have prepared 4 official color styles for you. You don't need to wait for these four colors to be produced. We will ship them to you within one day at the earliest. Of course, we also support DIY painting. If you want to make the color you want, please contact us.

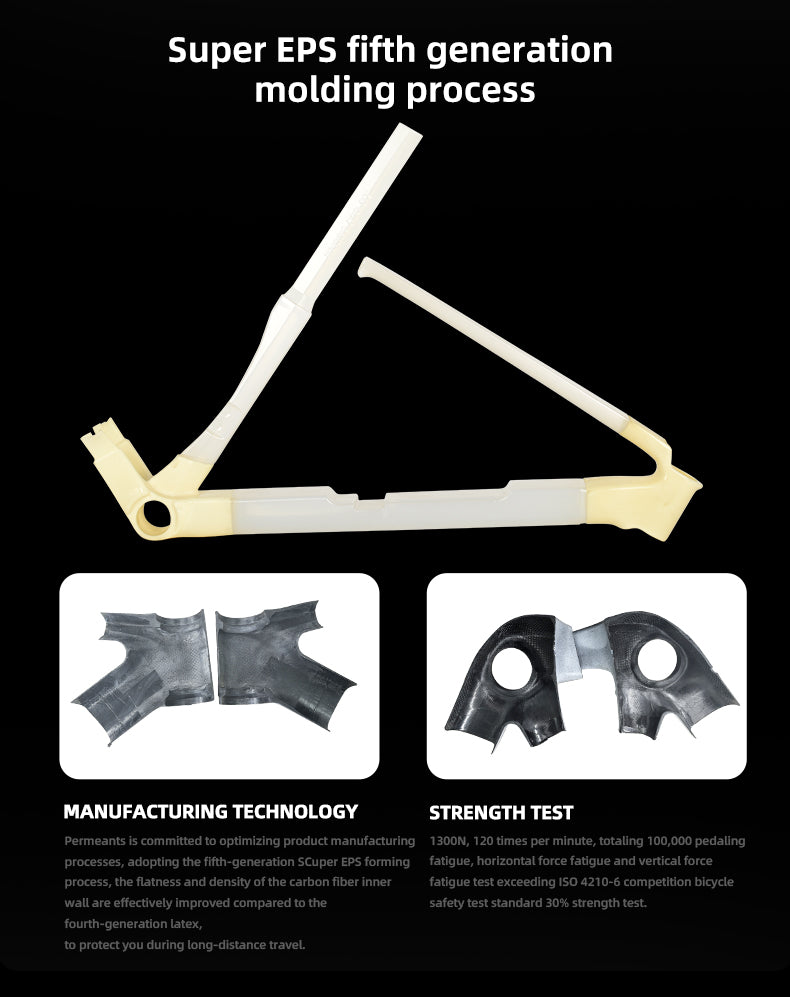

Manufacturing process

Super EPS Process

Permeants is committed to optimizing product manufacturincprocesses,adopting the fifth-generation Scuper EPS formingprocess,the flatness and density of the carbon fiber inner
wall are effectively improved compared to the fourth-generation latex,
to protect you during long-distance travel.

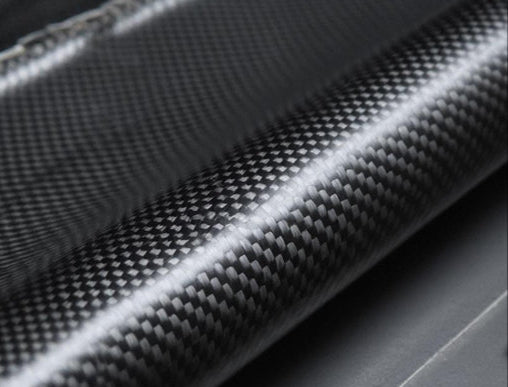

3K carbon fiber cloth pattern picture

Carbon fiber material

Toray Carbon Fiber T800+T1000

The frame is made of a large amount of T800 material.
The entire body of the vehicle is made of T800 material.
At the same time, T1000 is used to strengthen the important stress-bearing parts such as the bottom bracket and head tube.
The body has smaller sprint deformation and stronger rigidity.

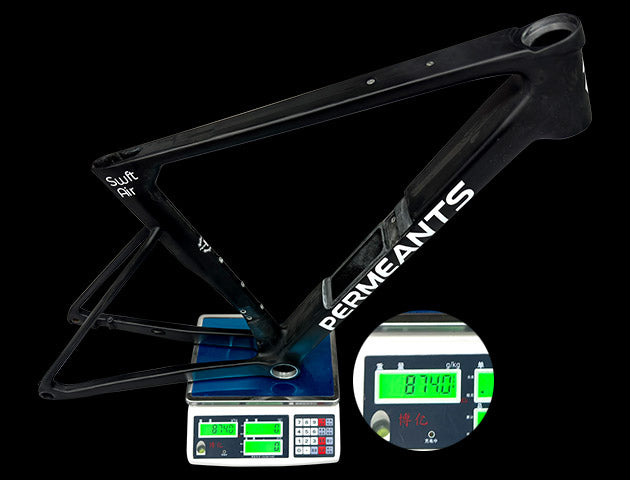

Weight

Unpainted 840g

Official paint weight reference:(Size S, excluding accessories)

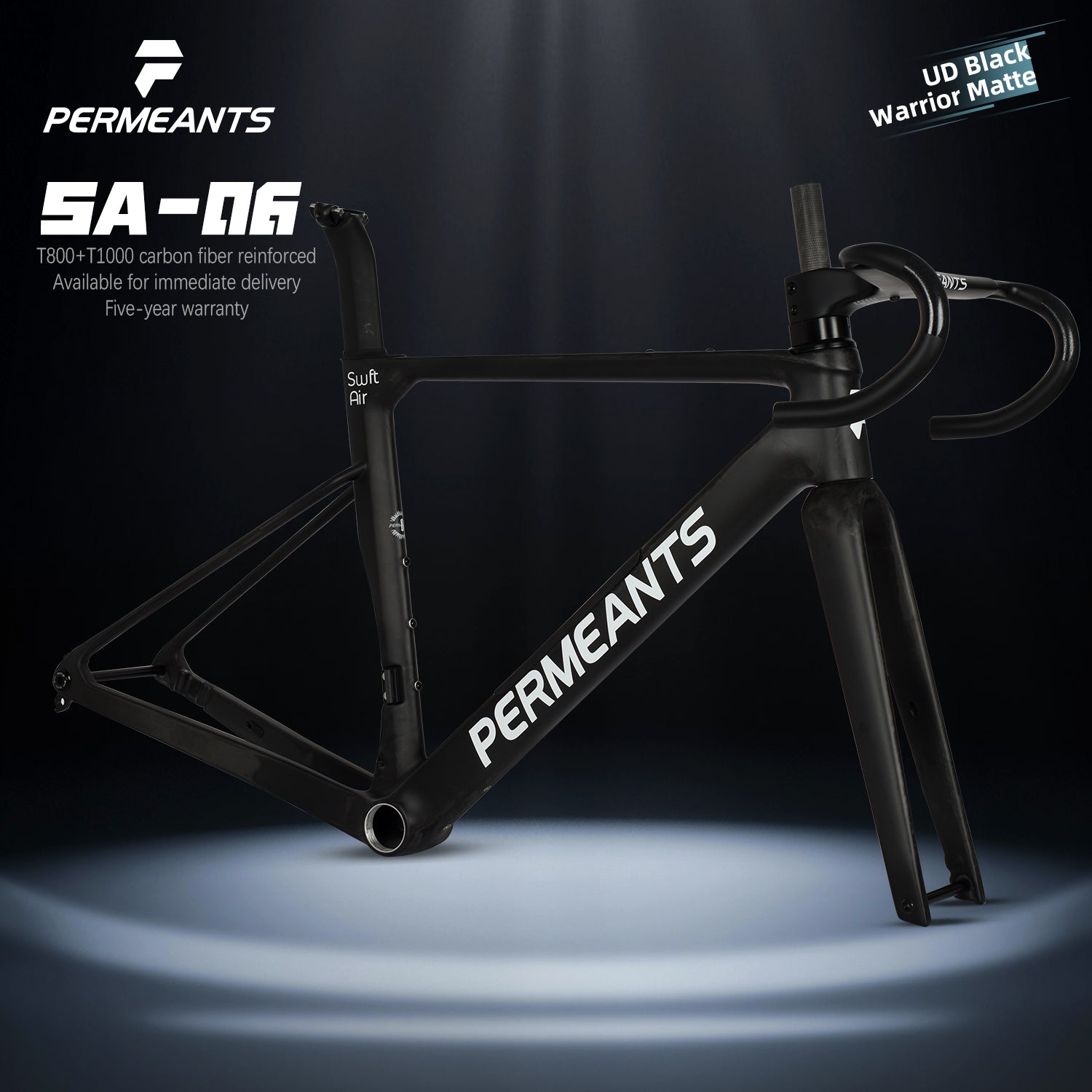

UD Black Warrior Matte: 875g

Pearl Green Pink:1020g

Pearl Blue: 1020g

Blue Silver: 1020g

Due to process reasons, the floating is +30g

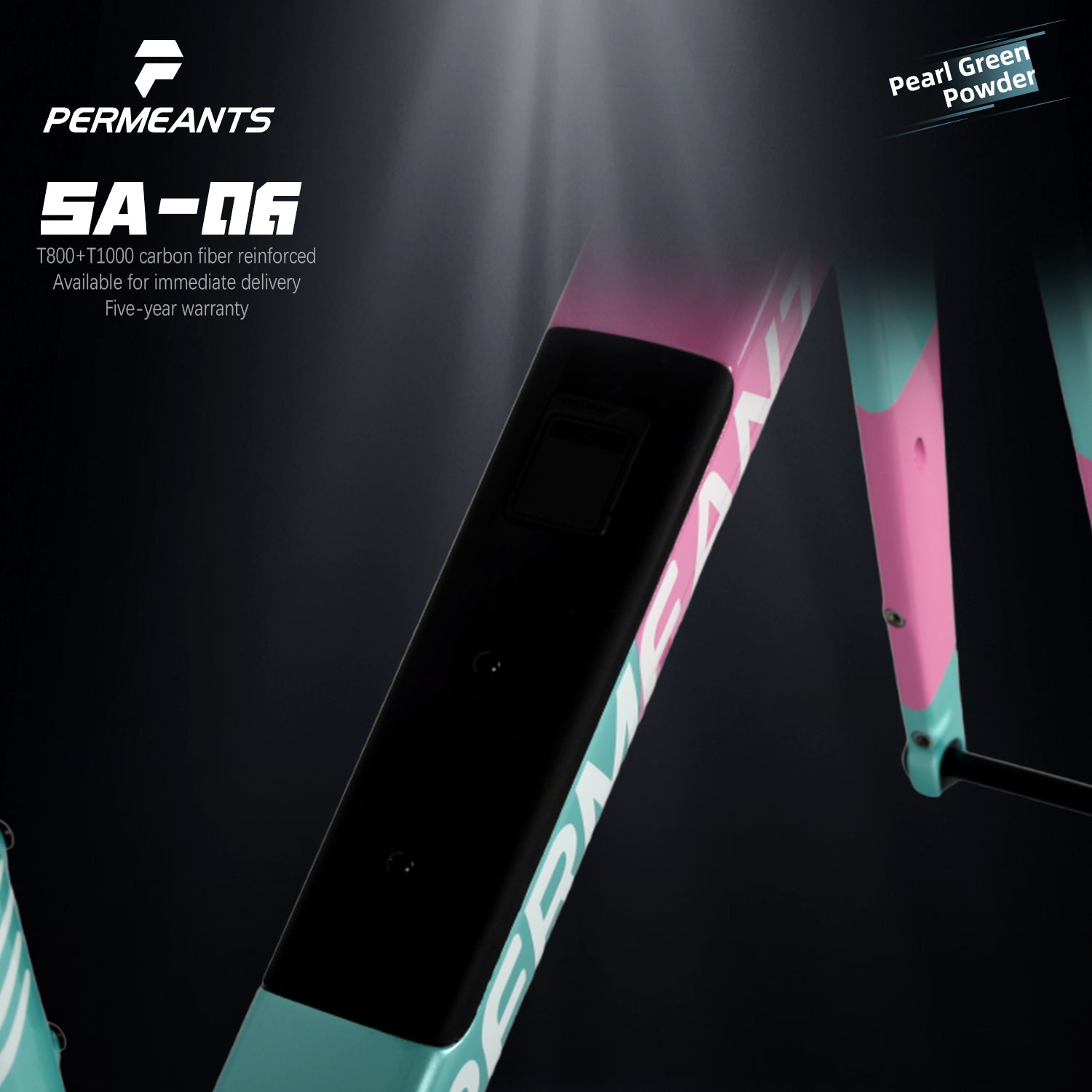

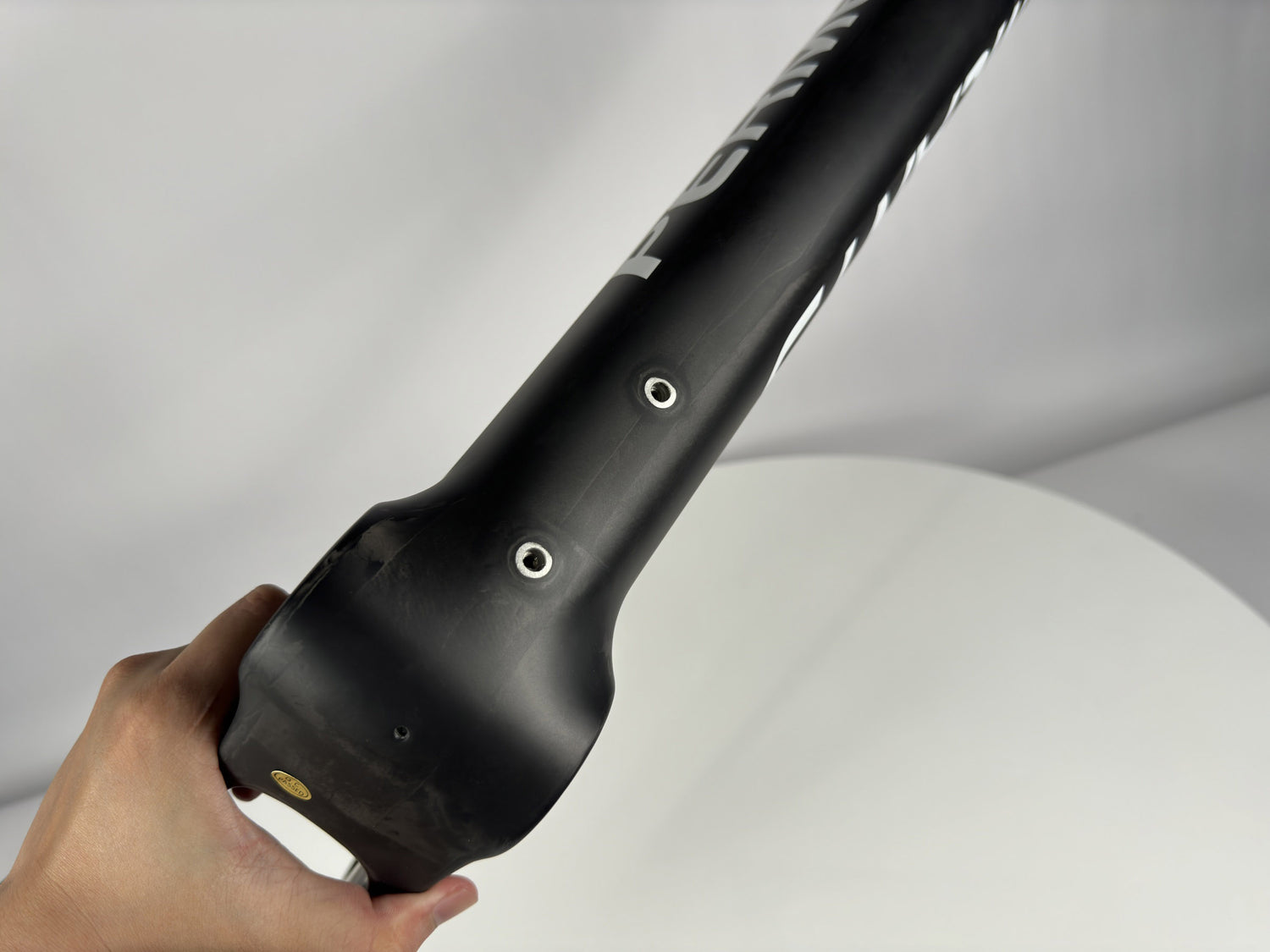

Storage Space

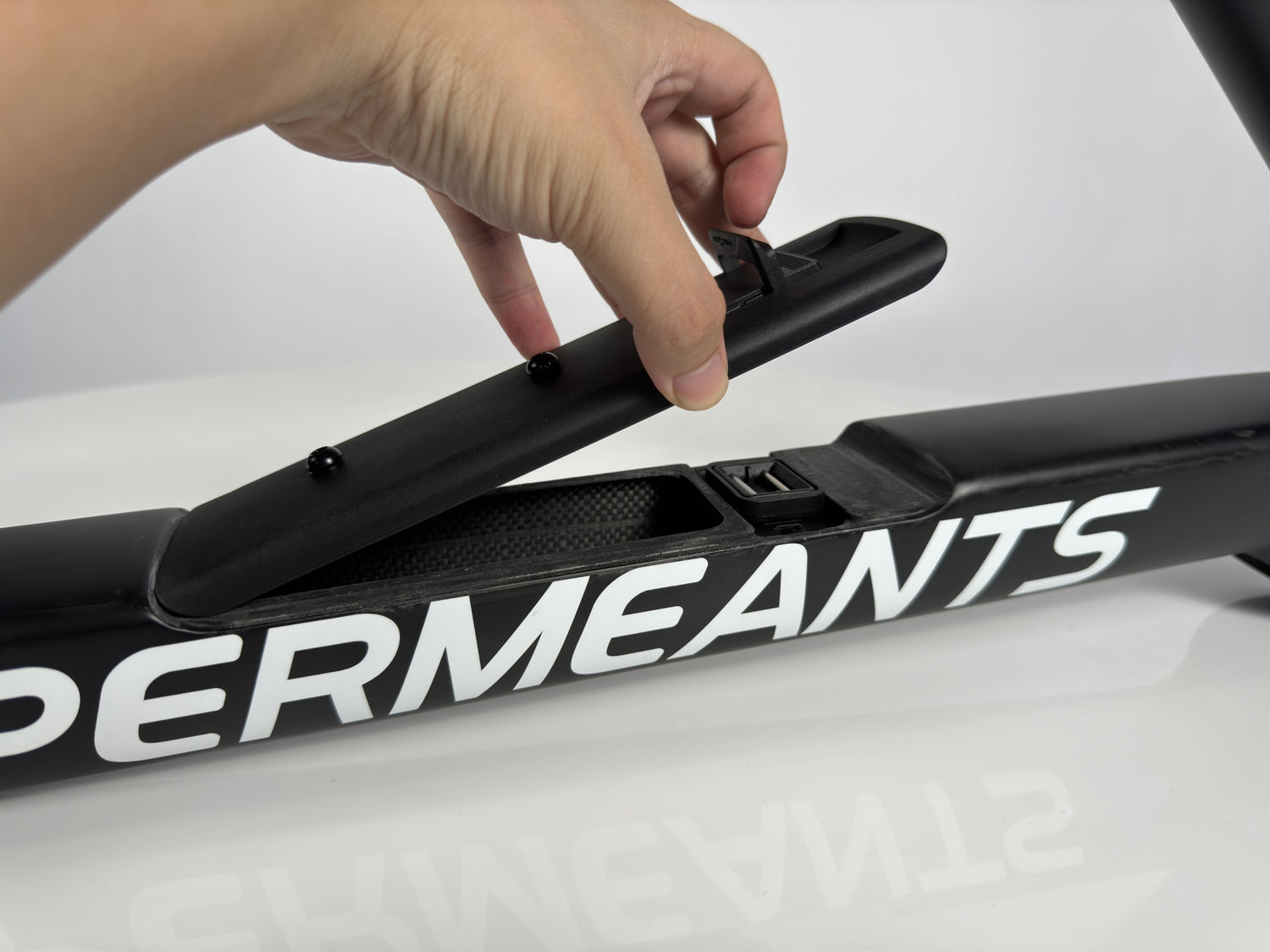

Magnetic Quick Release Cover

We use patented magnetic buckles that can be easily opened with just a gentle pull.
To close the lid, simply align it with the magnetic buckle and secure it firmly.

Magnetic attraction eliminates the need for magnets and provides mechanical locking, making it very stable without worrying about looseness

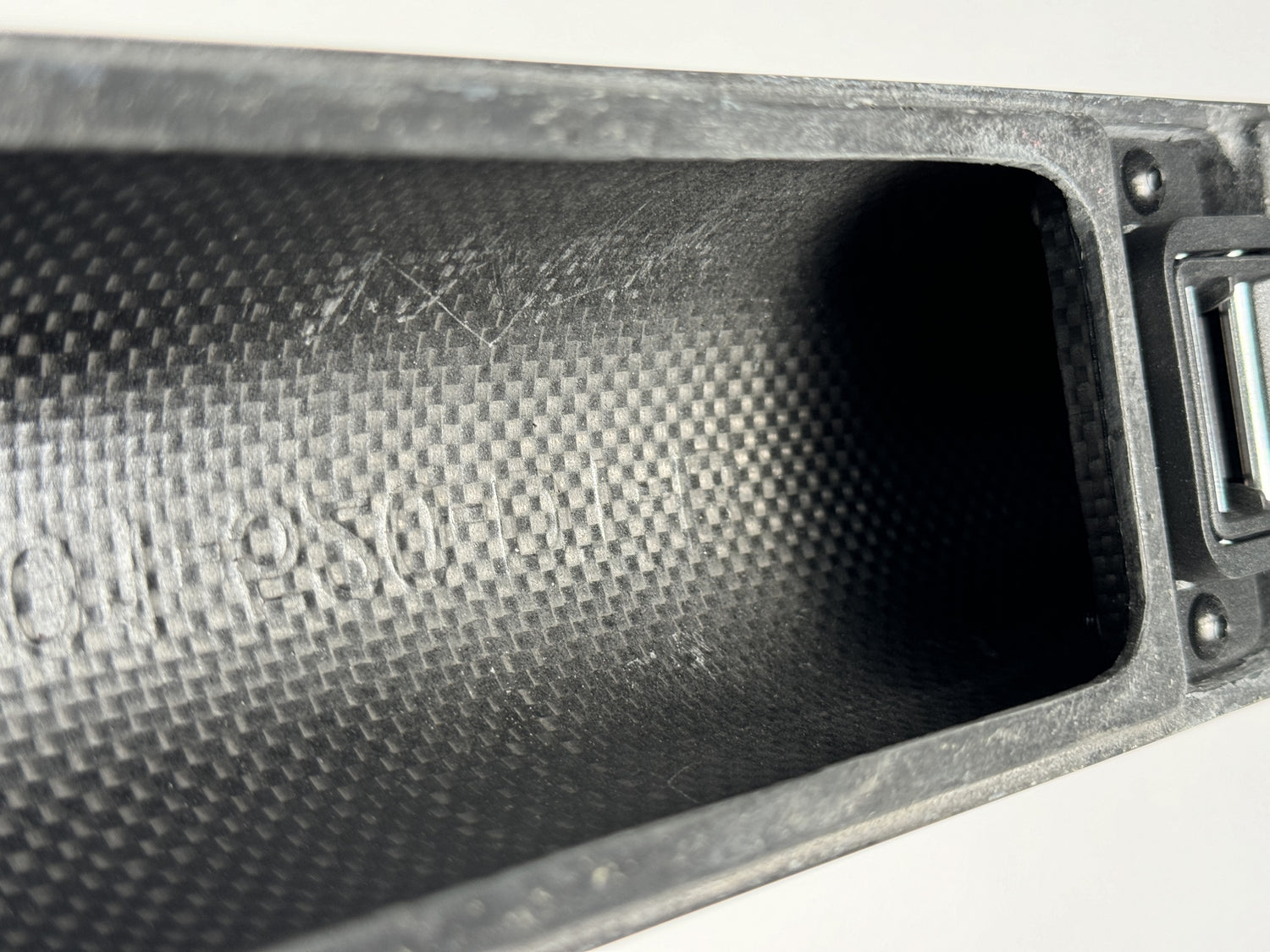

Storage Space

There is a huge storage space inside

which can hold at least one portable disposable gas cylinder, a set of bicycle tools, a set of inner tubes, and even a small gas cylinder.

Storage Space

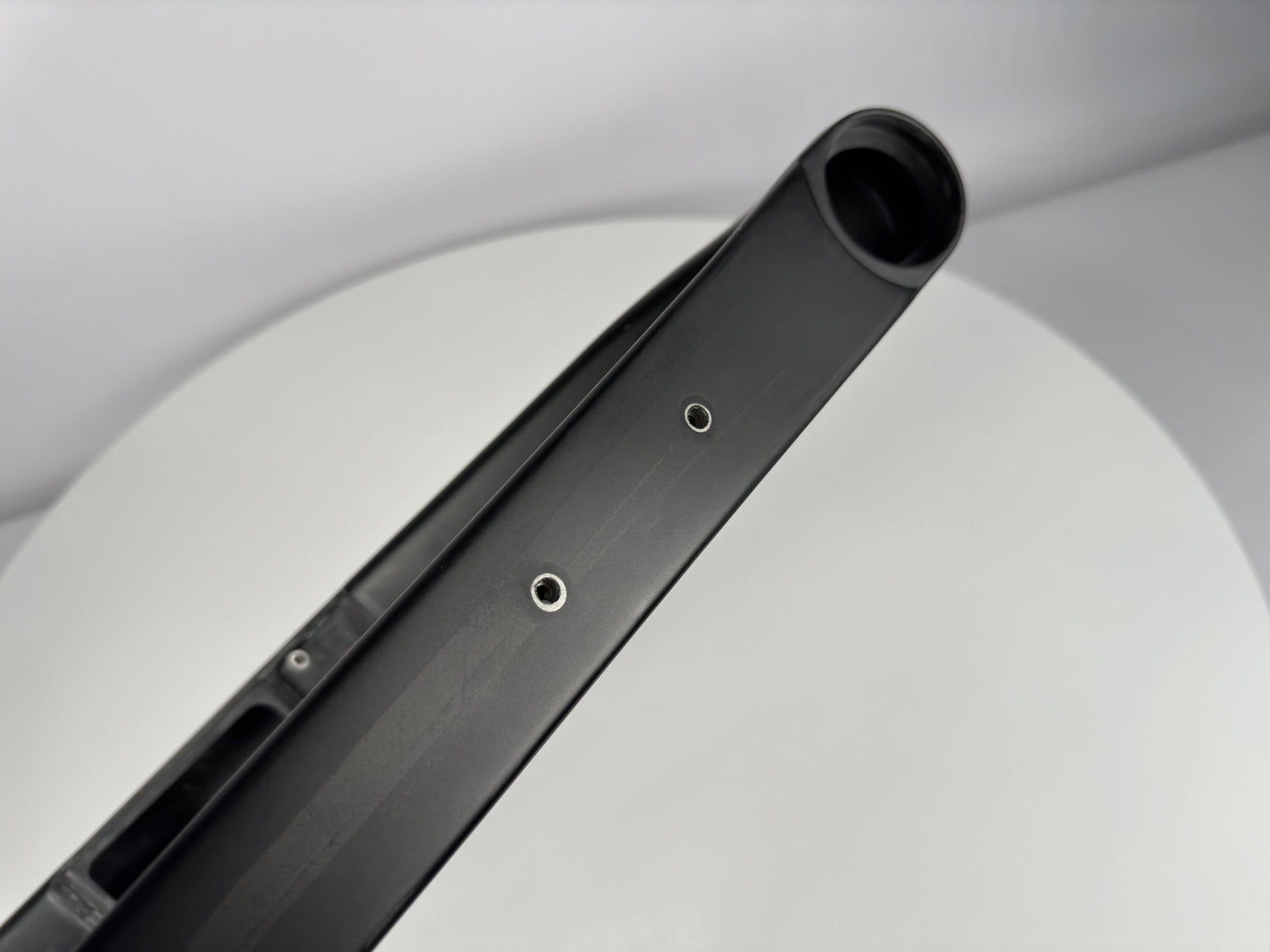

Mount point on top

The mounting points on top can usually secure tool boxes, portable water kettles, and quick drinking water systems. You can fix whatever you want

Storage Space

Lower mounting point

There is also a mounting point at the bottom of the Wutong, where gas cylinders and storage boxes can usually be mounted. This is close to the ground and is suitable for placing heavier objects here, effectively reducing the center of gravity of the vehicle and improving handling performance. However, there is a risk of soil accumulation here, so it is recommended to place some tool equipment.

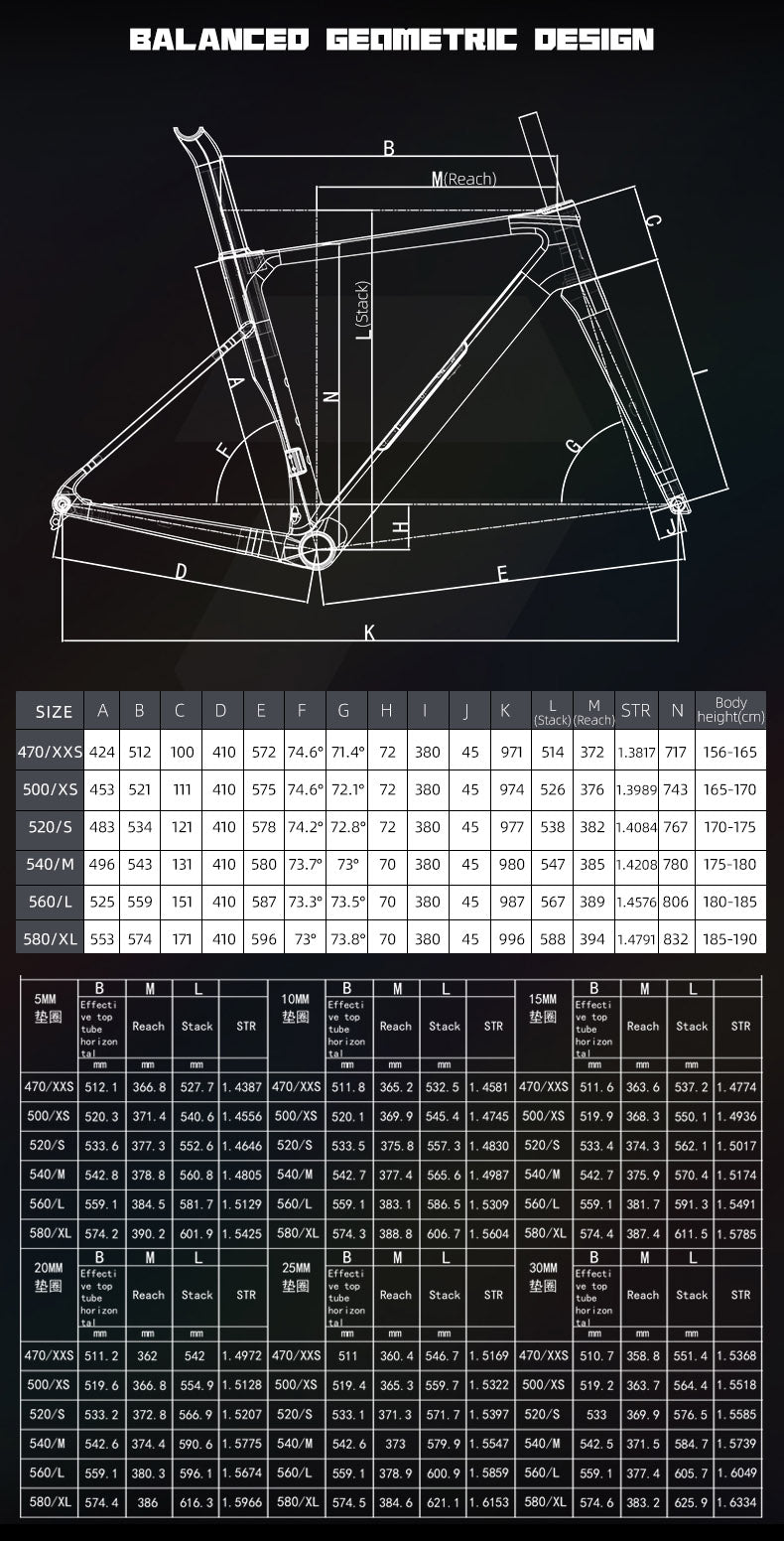

Geometry
