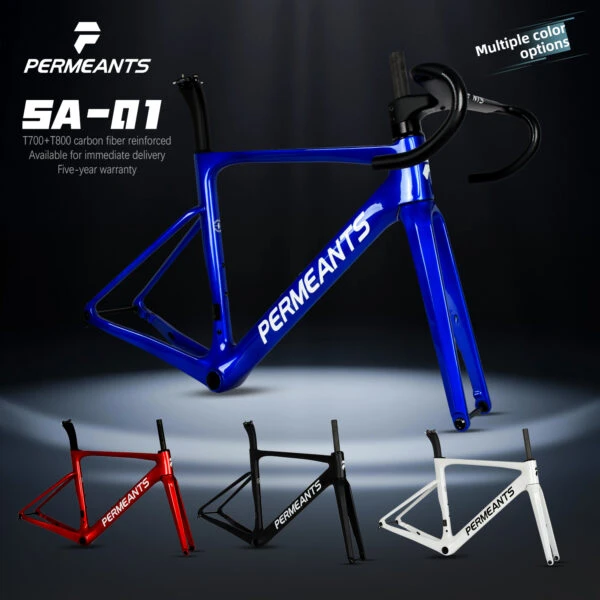

PERMEANTS SA-01 comprehensive carbon road bike frame Four Colors
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  1. PERMEANTS SA-01 comprehensive carbon road bike frame Four Colors
  2. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  3. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  4. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  5. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  6. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  7. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  8. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc
  9. Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc

Permeants SA-01 Aero Carbon Fiber Road Bike Frame 405 Rc

Price range: $669.00 through $735.00

SKU: N/A Category: Brand:

🚴‍♂️ SA-01 Carbon Frame Specifications

Category Specification Details
General Information Model SA-01
Material Toray T800 + T1000 carbon fiber
Size Options XS-49cm, S-52cm, M-54cm, L-56cm, XL-58cm
Weight Specifications Frame Weight 1050 ± 30g (Size M, without axle)
Fork Weight 415 ± 20g
Seatpost Weight 240 ± 20g
Handlebar Weight 420 ± 20g (Integrated)
Structure & Compatibility Cable Routing All internal hidden cable routing
Headset 1-1/2″ 52mm top and down
Bottom Bracket (BB) BB86
Brake System Flat mount disc brake (140/160mm compatible)
Thru Axle Front 10012mm / Rear 14212mm
Max Tire Clearance 700 * 32C MAX
Packaging & Warranty Package Includes Frame, fork, seatpost, integrated handlebar, thru axle, clamp
Warranty Period 5 years

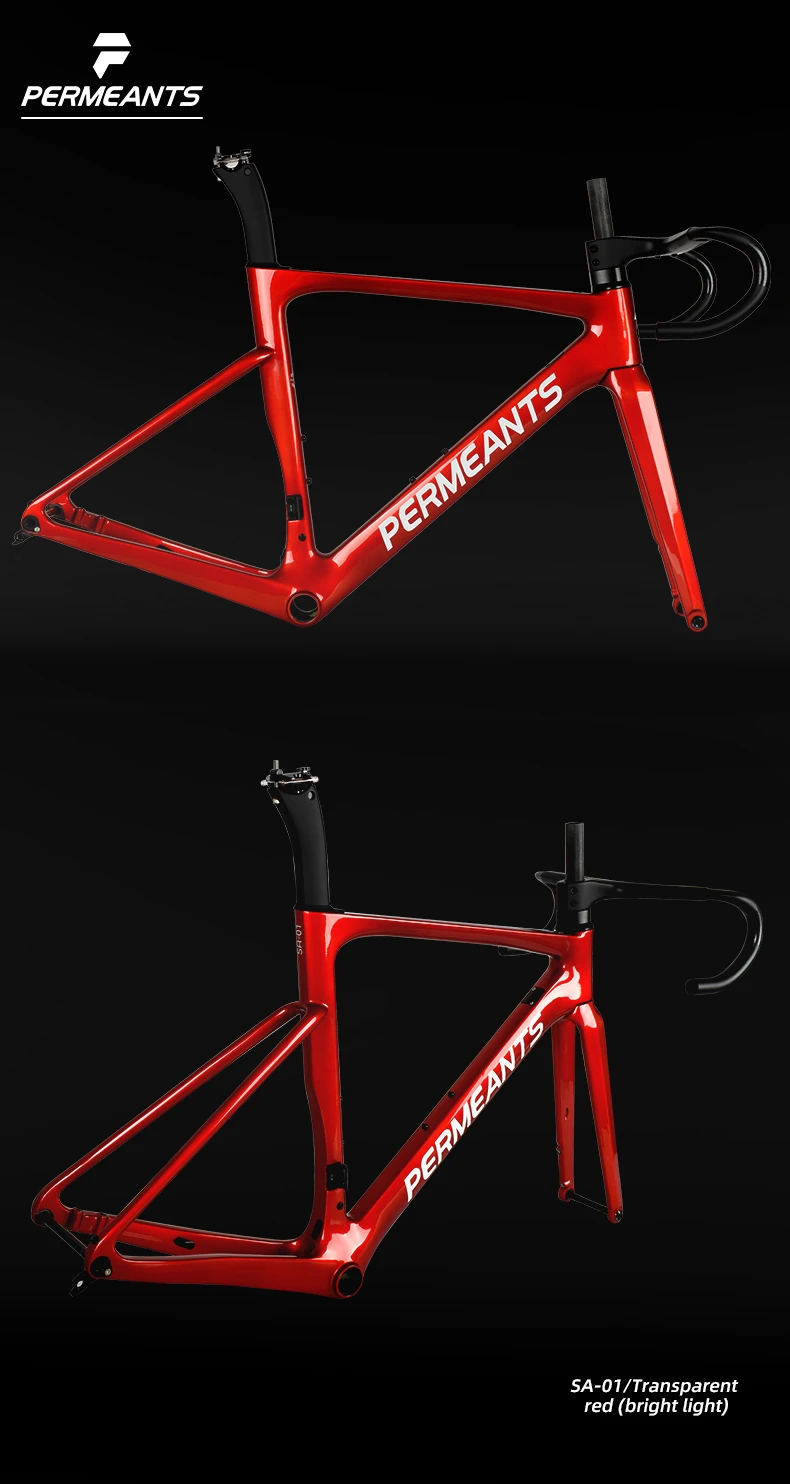

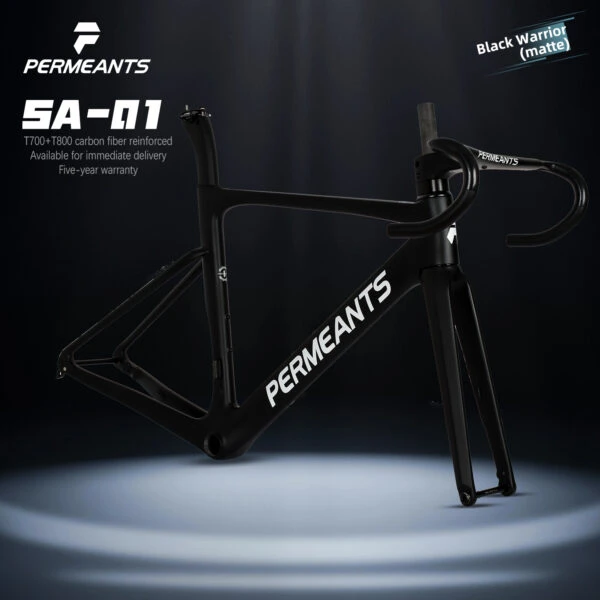

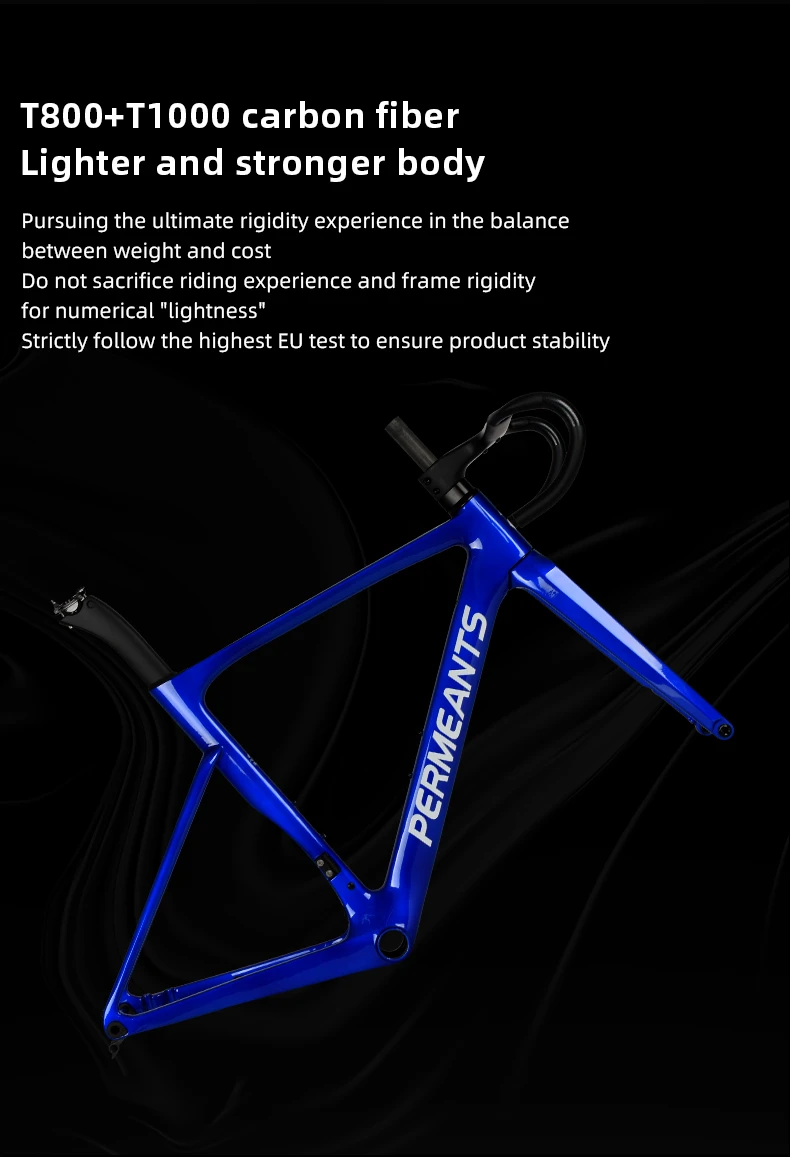

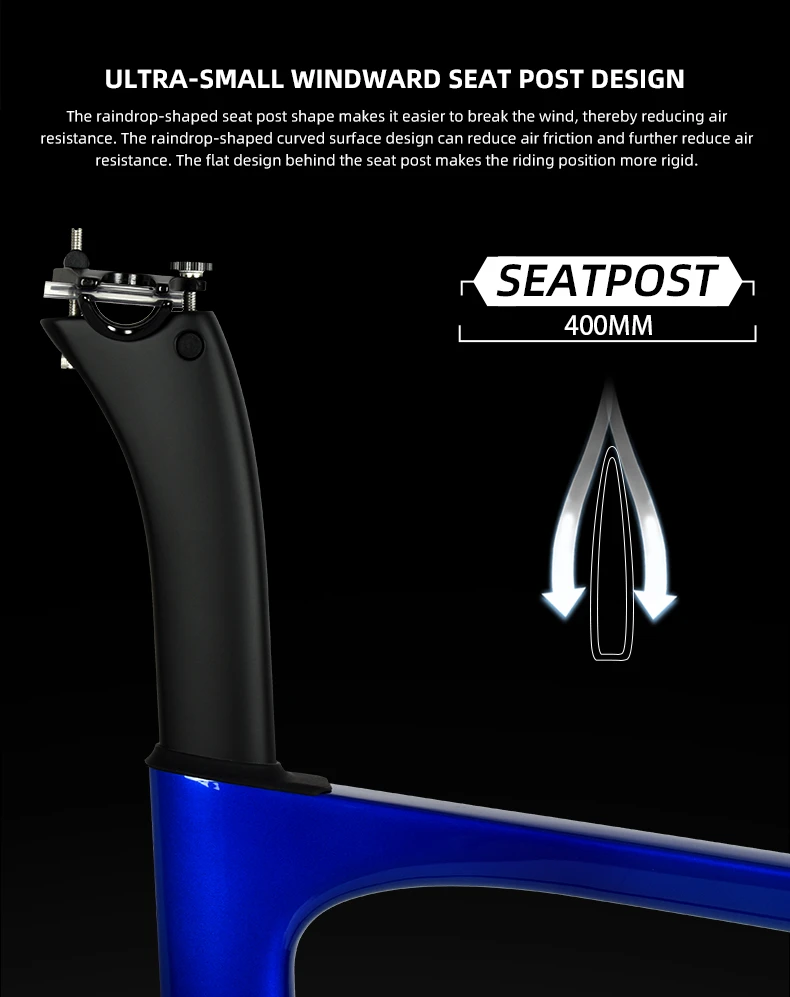

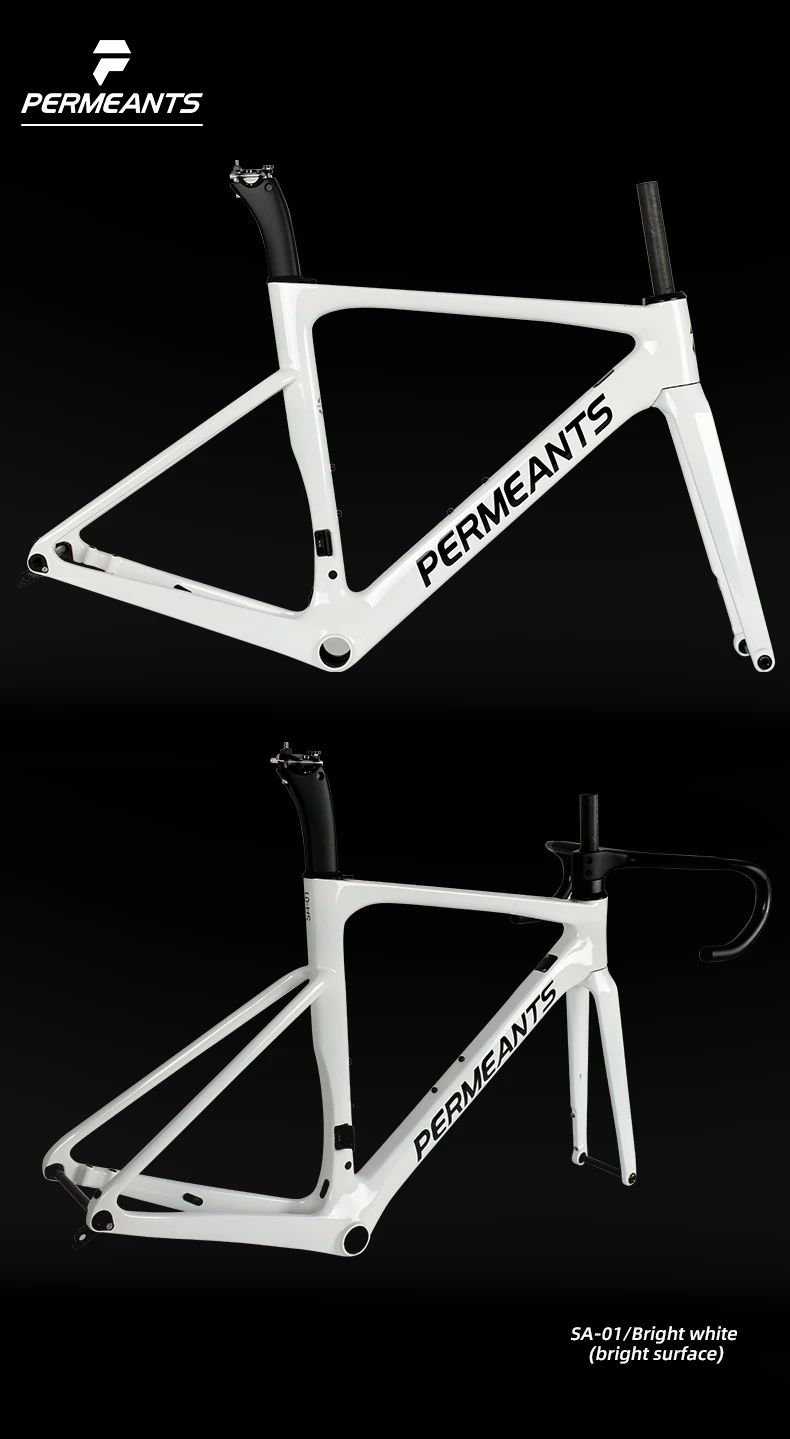

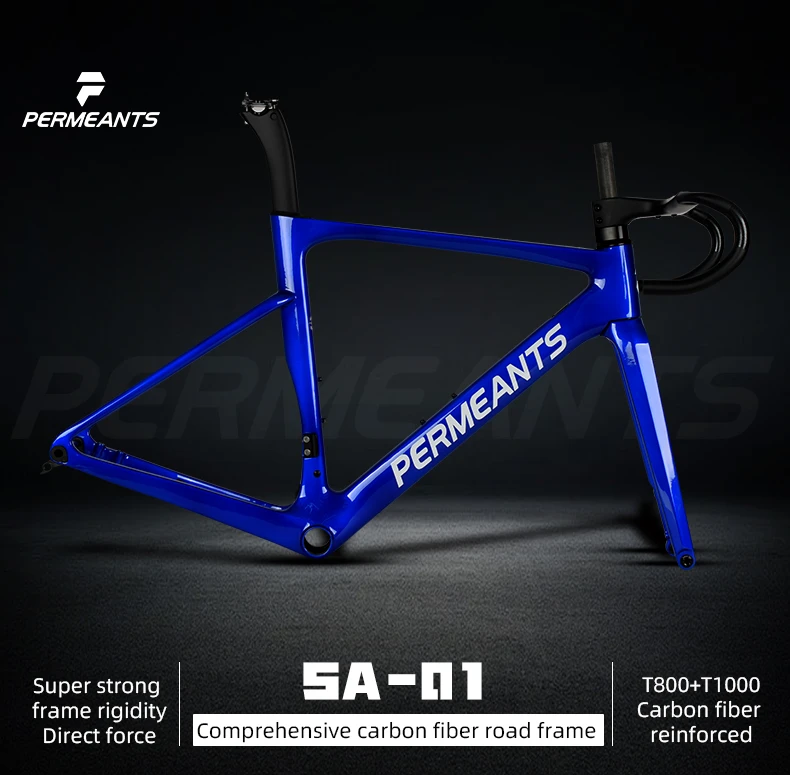

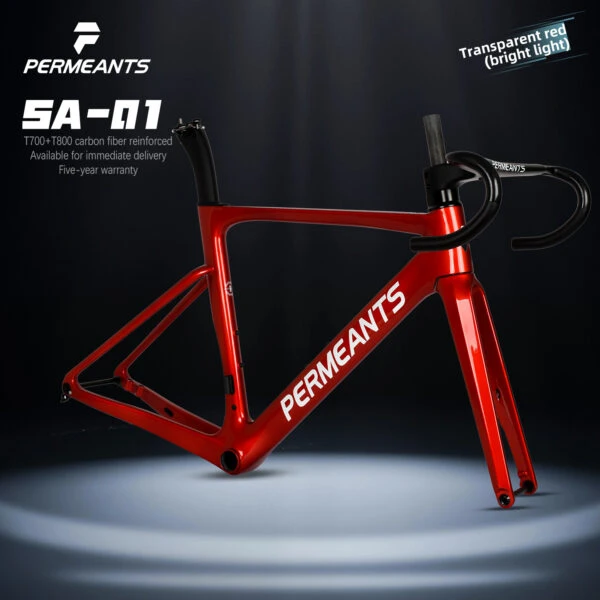

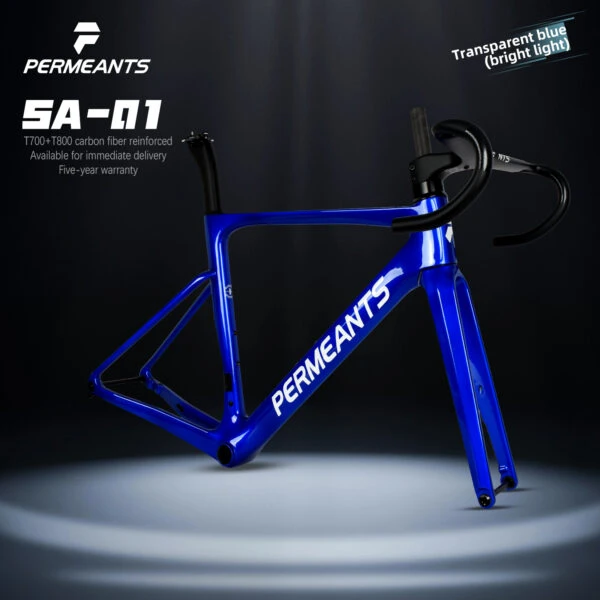

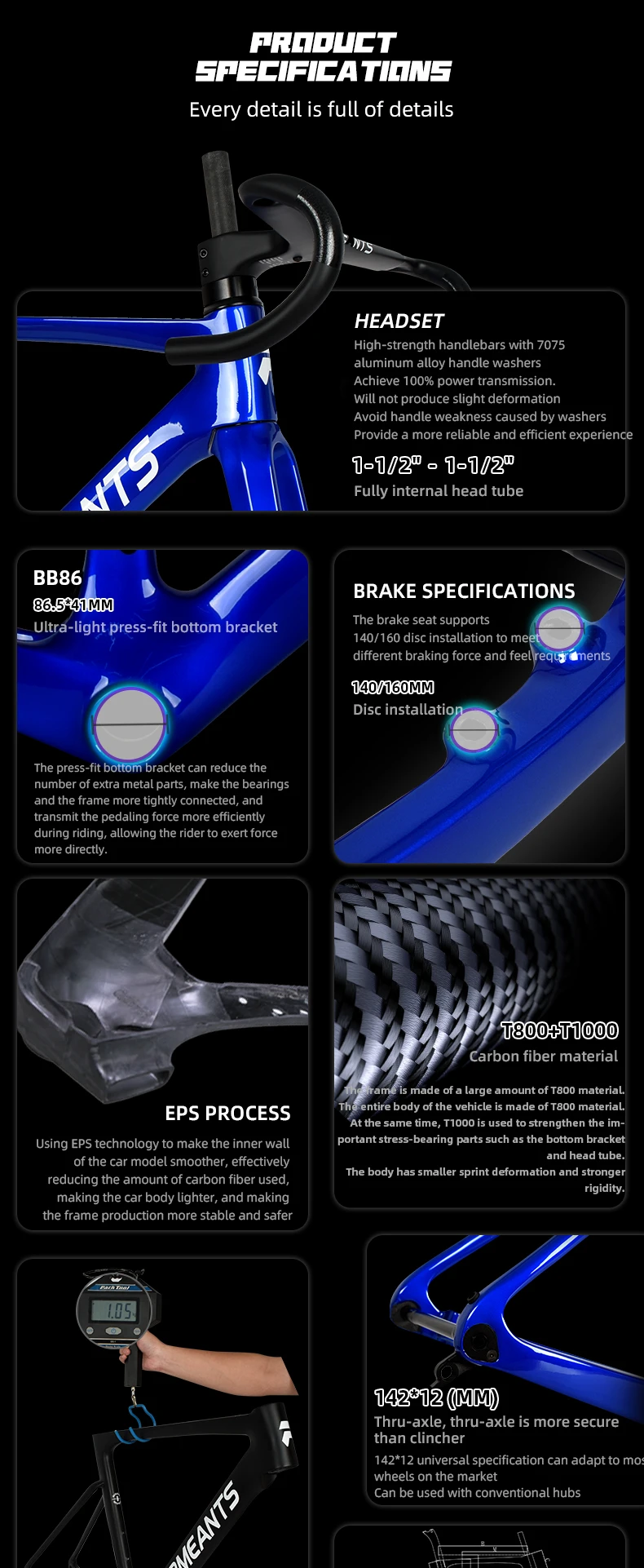

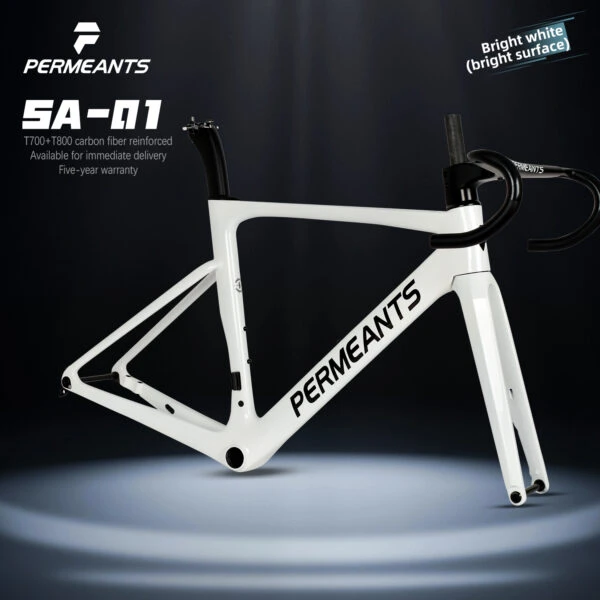

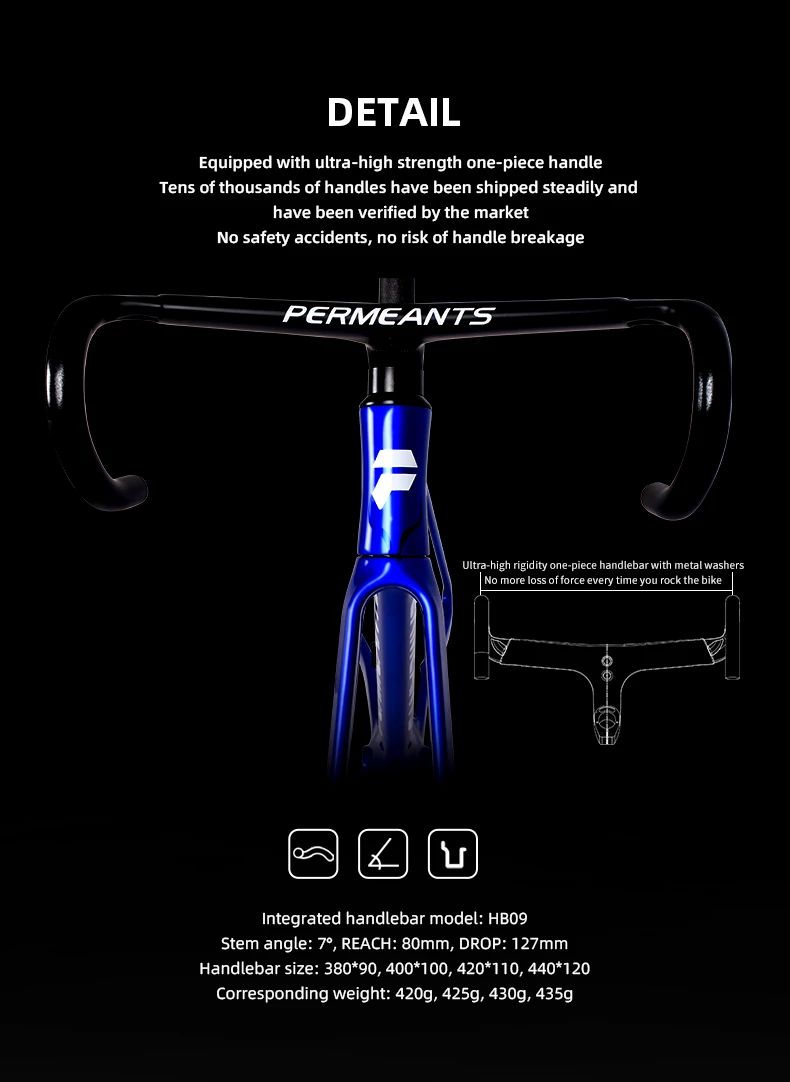

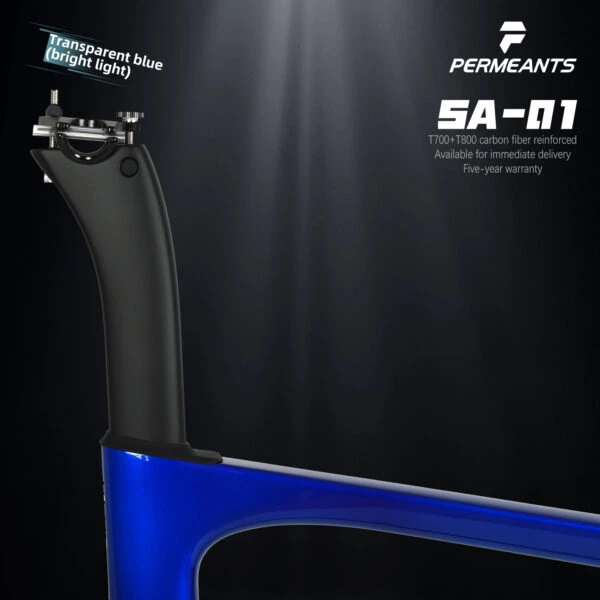

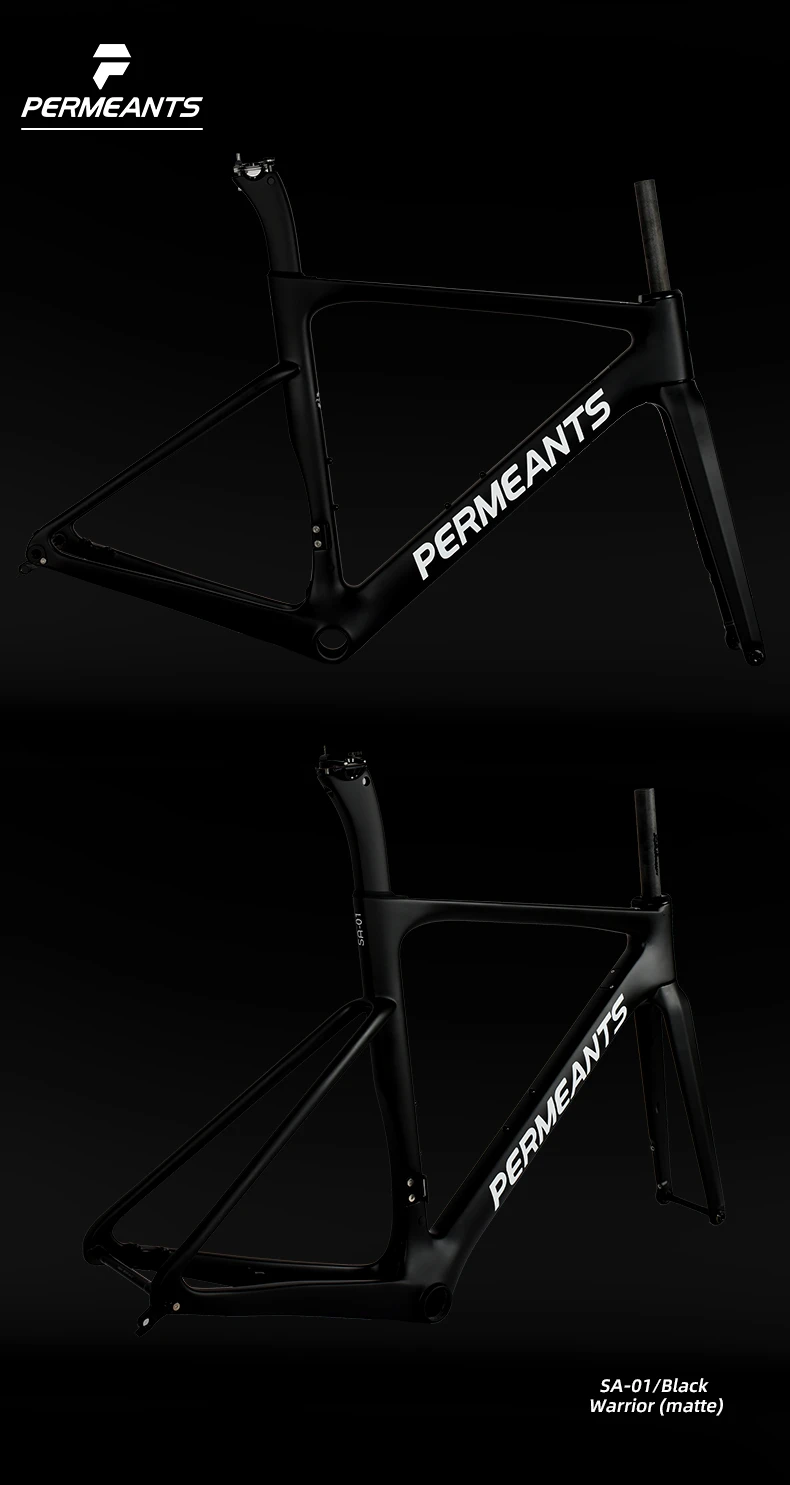

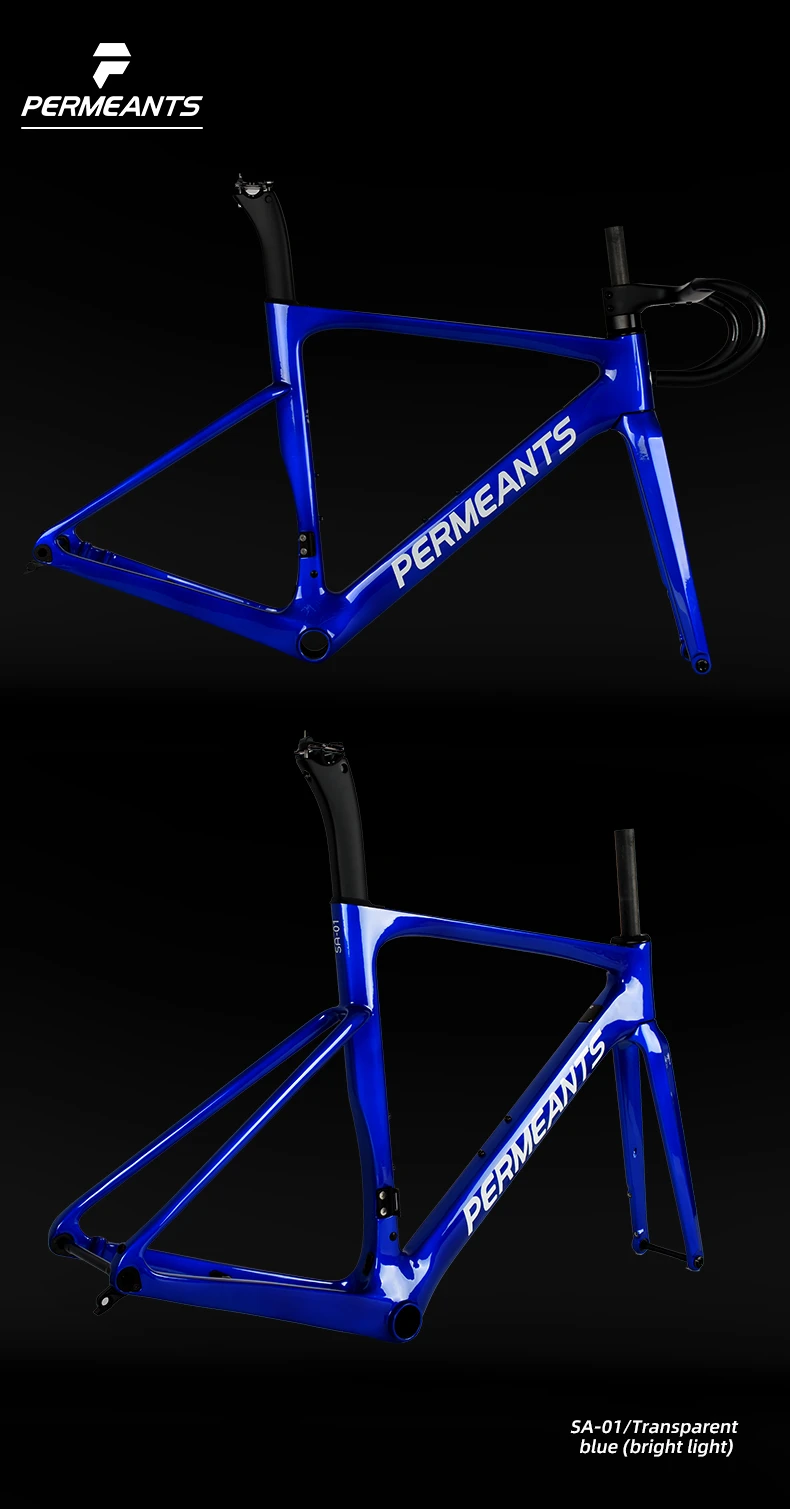

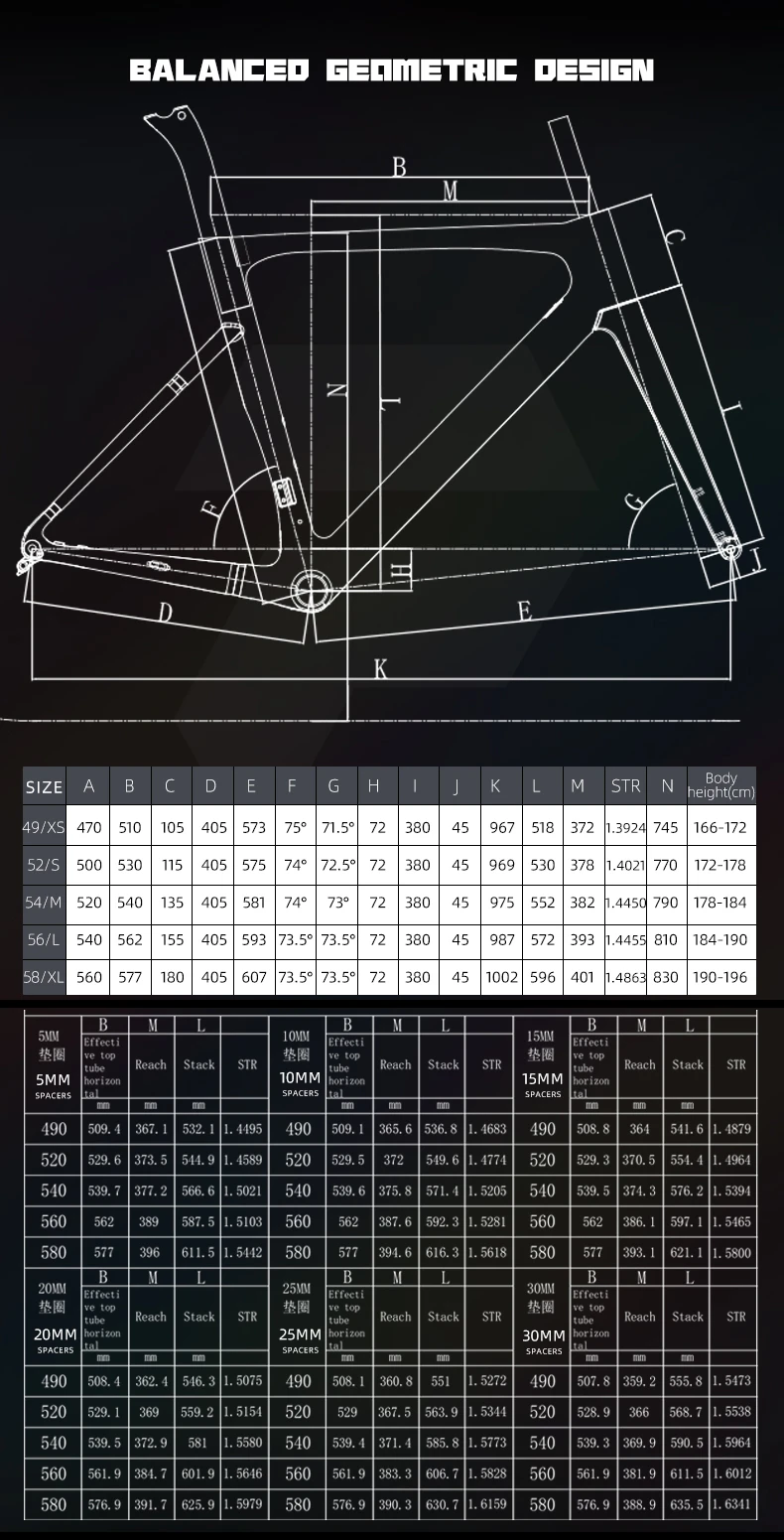

PERMEANTS SA-01 transparent blue comprehensive carbon road bike frame.BB86 press-fit bottom bracket and EPS process details on SA-01 carbon frame. SA-01 carbon frame with 32c max tire capacity and high-strength front fork. Frame geometry chart and sizing guide for PERMEANTS SA-01 carbon road bike. Ultra-high rigidity one-piece carbon integrated handlebar for SA-01 road frame. Angled view of the lightweight and strong PERMEANTS SA-01 blue carbon frame. 400mm raindrop-shaped aero seatpost for PERMEANTS SA-01 carbon road frame. Custom painting service for PERMEANTS SA-01 carbon frames, allowing custom colors and patterns. PERMEANTS SA-01 carbon road bike frame from two angles in a bright transparent blue finish. PERMEANTS SA-01 carbon road bike frame from two angles in a bright transparent red finish. PERMEANTS SA-01 carbon road bike frame in stealth warrior matte black finish. PERMEANTS SA-01 carbon road bike frame from two angles in a bright white glossy surface.

size

49/XS, 52/S, 54/M, 56/L, 58/XL
color

DIY color, red, white, Black Matte, blue
Handle

handlebar*1 Size 380*90, handlebar*1 Size 400*100, handlebar*1 Size 420*110, handlebar*1 Size 440*120, NO handlebar
